1000 Series

Product Categories

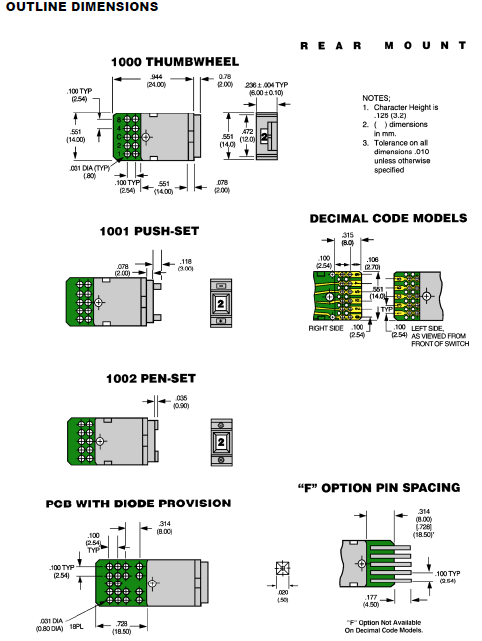

If a front panel, binary coded switch in the smallest possible package is part of your design requirements, look no farther than the EECO 1000 series. This compact, rear mount switch family offers a full set of features and options. Actuation methods include Thumbwheel, push-set and pen-set models.

The pen-set model eliminates the possibility of changing settings accidentally, and is ideal for "set and forget" applications.

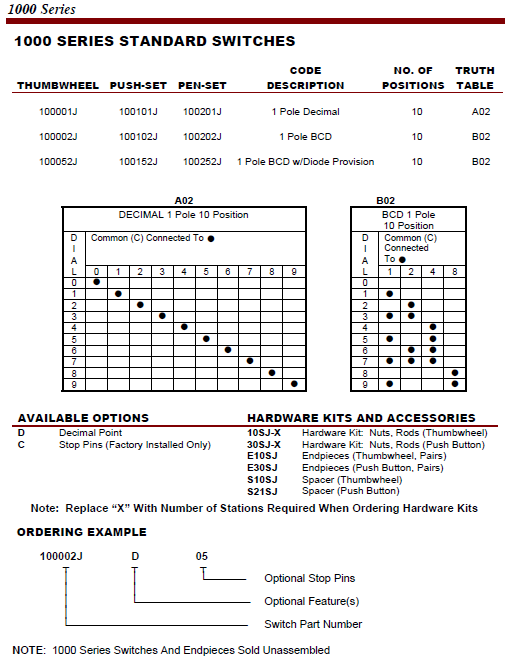

The 1000 series is available in both decimal and binary coded versions. The binary coded models also offer optional diode provision termination or F-pins for attaching the switch to a mother board. Stop pins are available on all models.

The 1000 series is backed by EECO's one year warranty.
