1400 Series

Product Categories

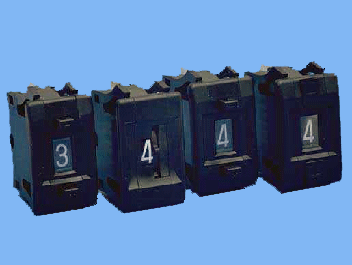

EECO's 1400 series switches feature snap-in front mounting in a large, easy to use package size.

These switches snap together, allowing the user to create multi-switch assemblies quickly and easily without the need for additional hardware. The 1400 series offers a choice of thumbwheel, push-set or lock-set actuator methods.

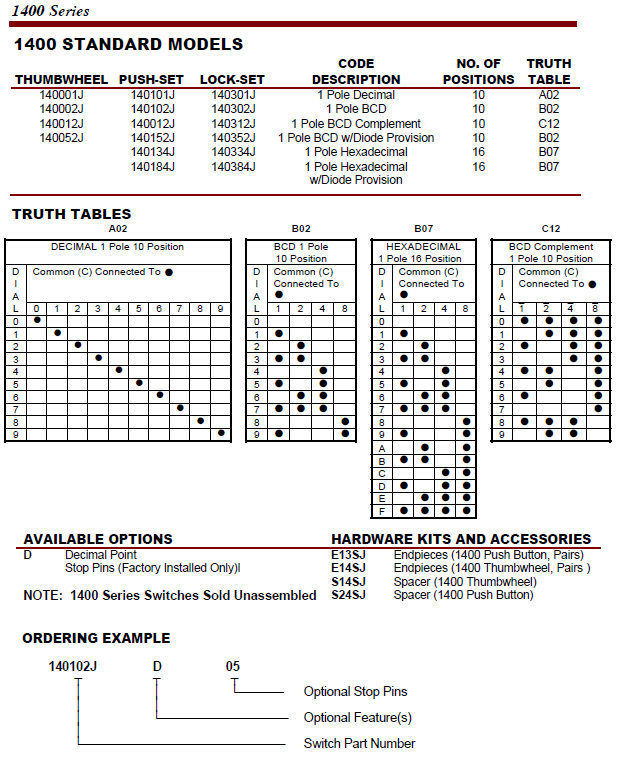

The lock-set model eliminates the possibility of accidental setting changes in critical applications. The 1400 series offers several 10 and 16 position binary and decimal output codes. Options such as diode provision termination, stops and F-pins for P.C. board mounting make the 1400 series switch a popular choice among design engineers.

The 1400 series is covered by EECO's one year warranty.
