2300 Series

Product Categories

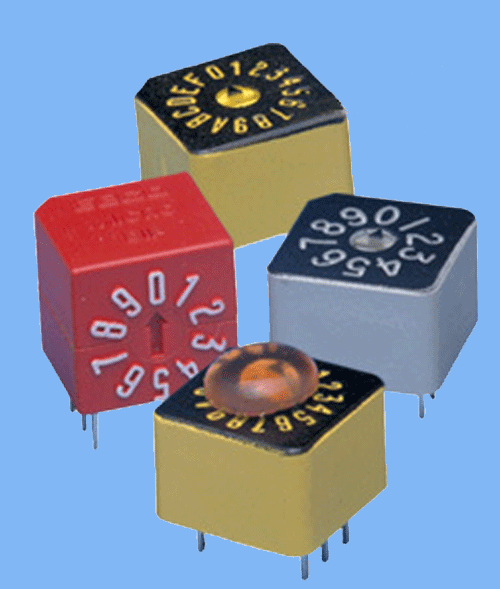

An EECO innovation, the 2300 series MICRO-DIP® family includes the industry's only double pole rotary DIP switch.

Ideal for CMOS logic applications, the 2300 series double pole switch offers a unique output arrangement in which all four outputs bits are always connected to one of two independent commons. This allows the use of a single pull-up resistor instead of four, as would be required by a conventional DIP switch.

The 2300 series includes 10 and 16 position double pole models, and a 10 position right angle version. The double pole switches are available with optional process seals for wave soldering, and all are color coded for easy identification.

The 2300 series is series is covered by EECO's EXCLUSIVE LIFETIME WARRANTY.
